Model Whirlpool 1393^0A GAS RANGE – Common Parts & Diagrams

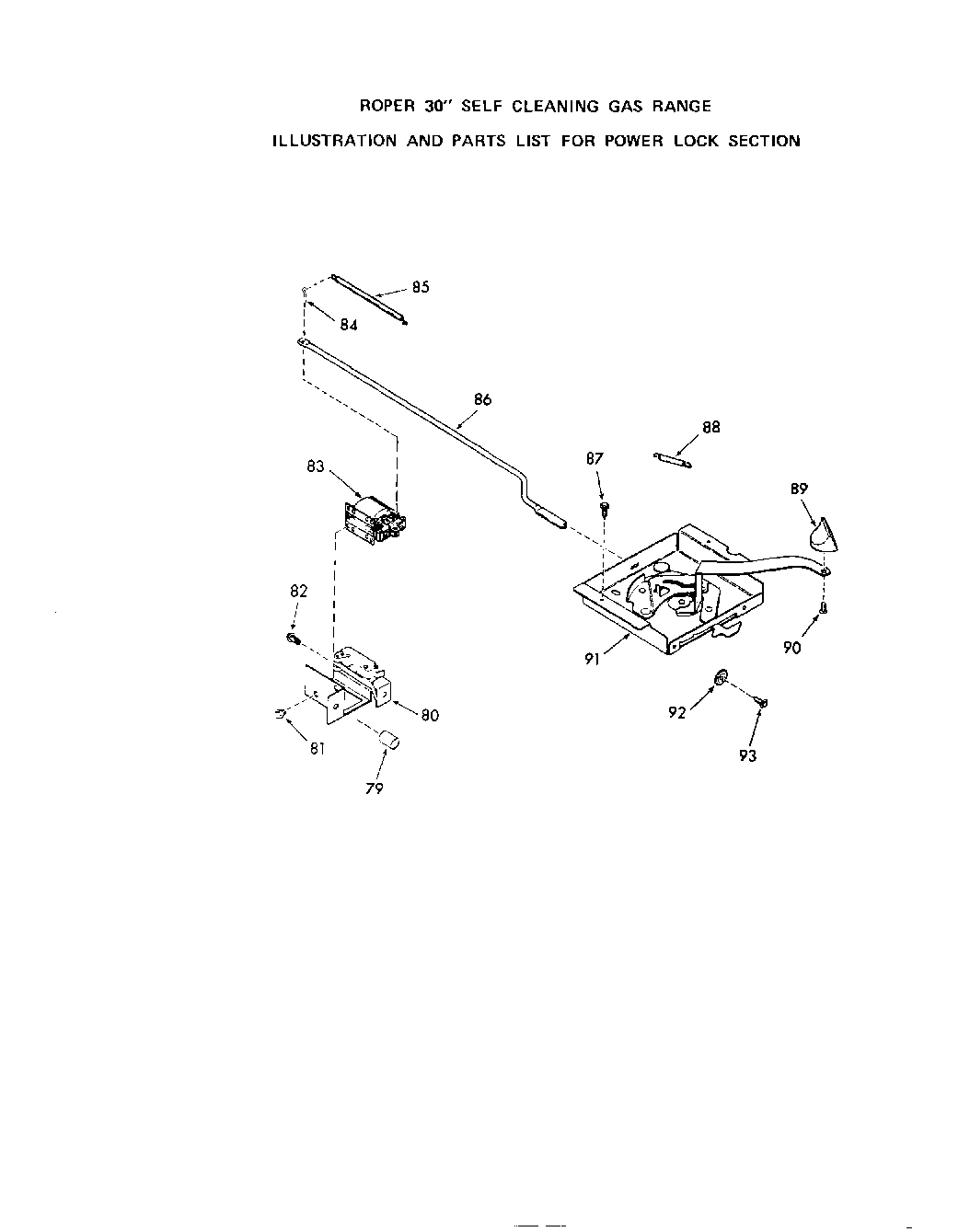

04 - POWER LOCK
06 - BODY

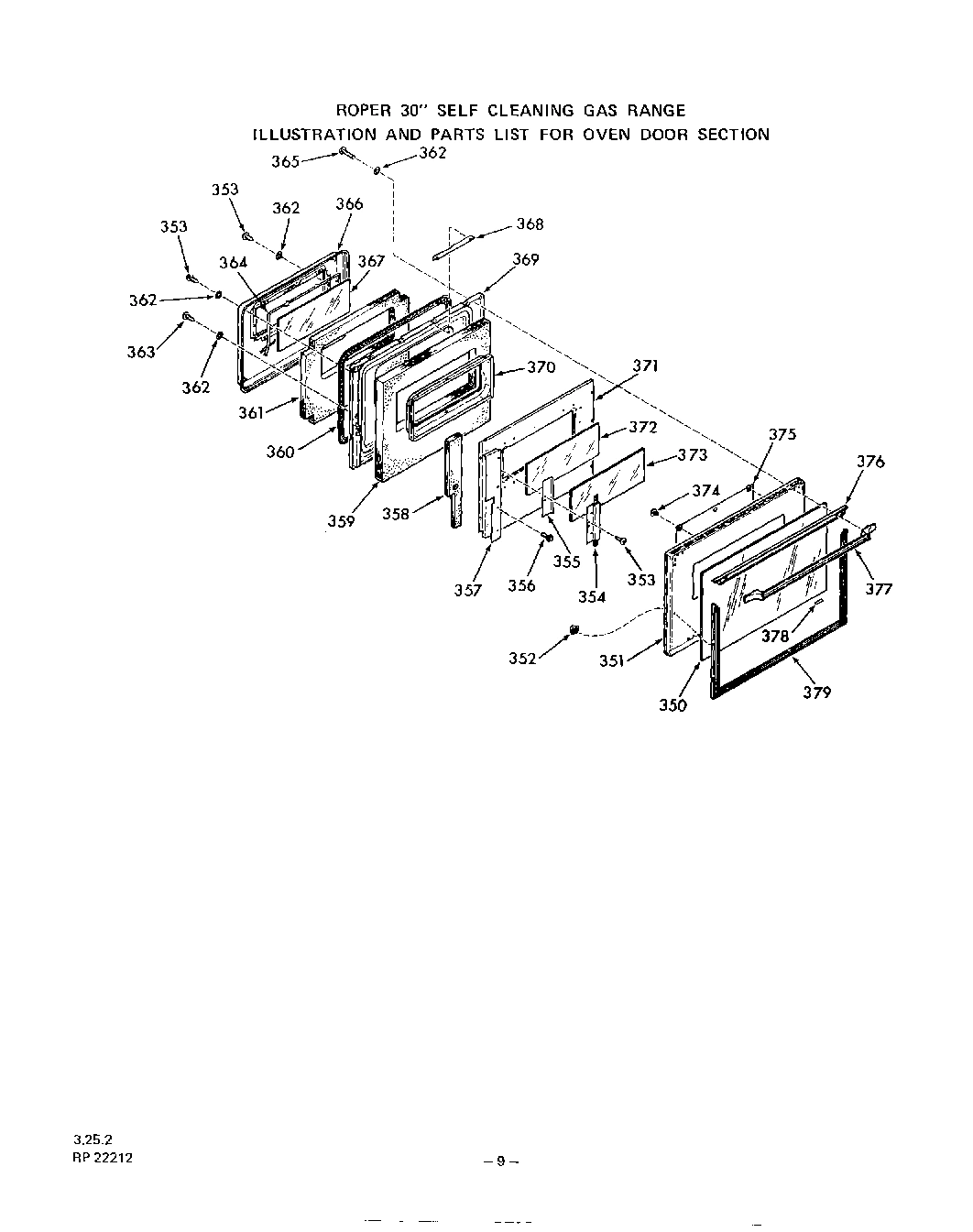

07 - OVEN DOOR

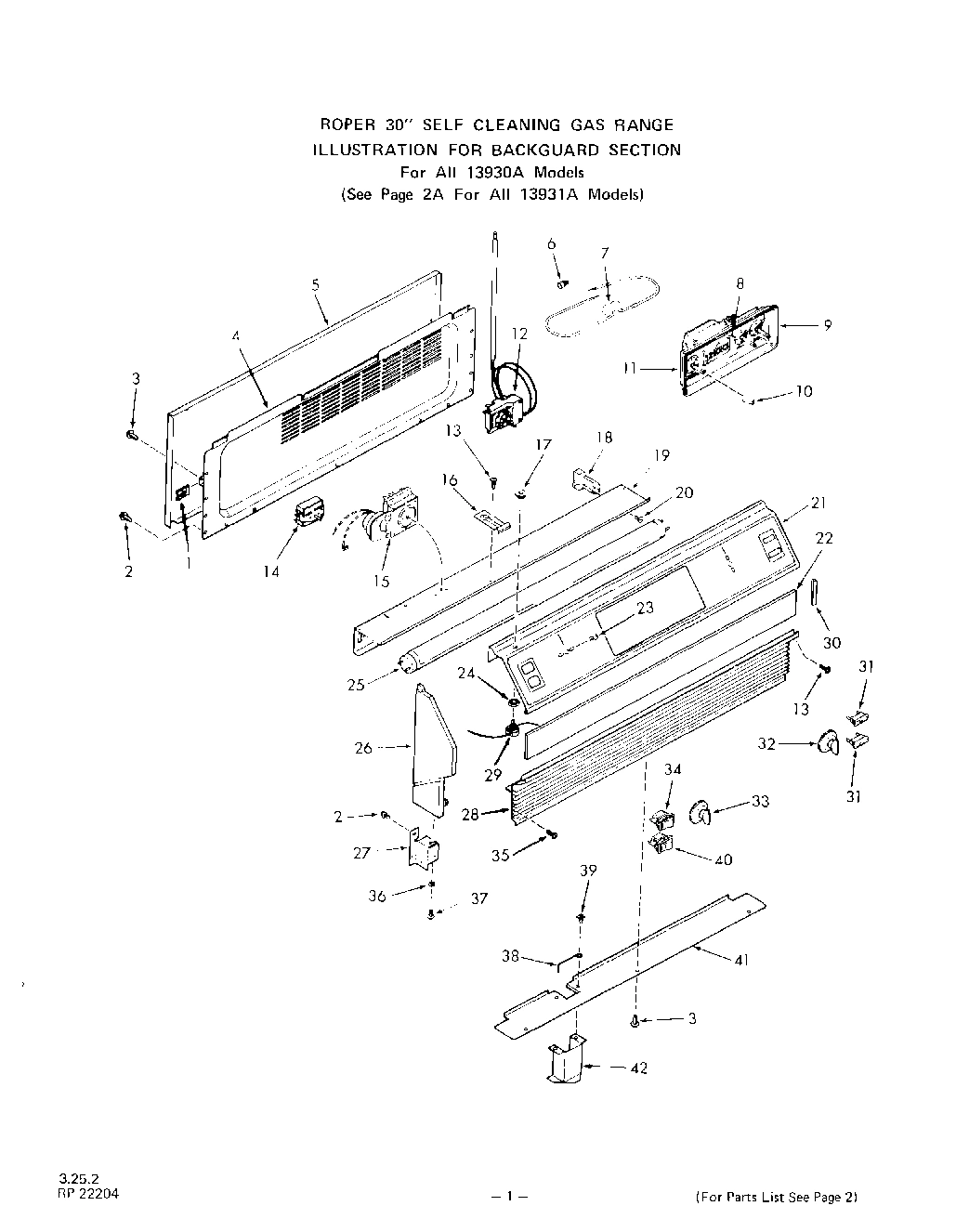

02 - SECTION

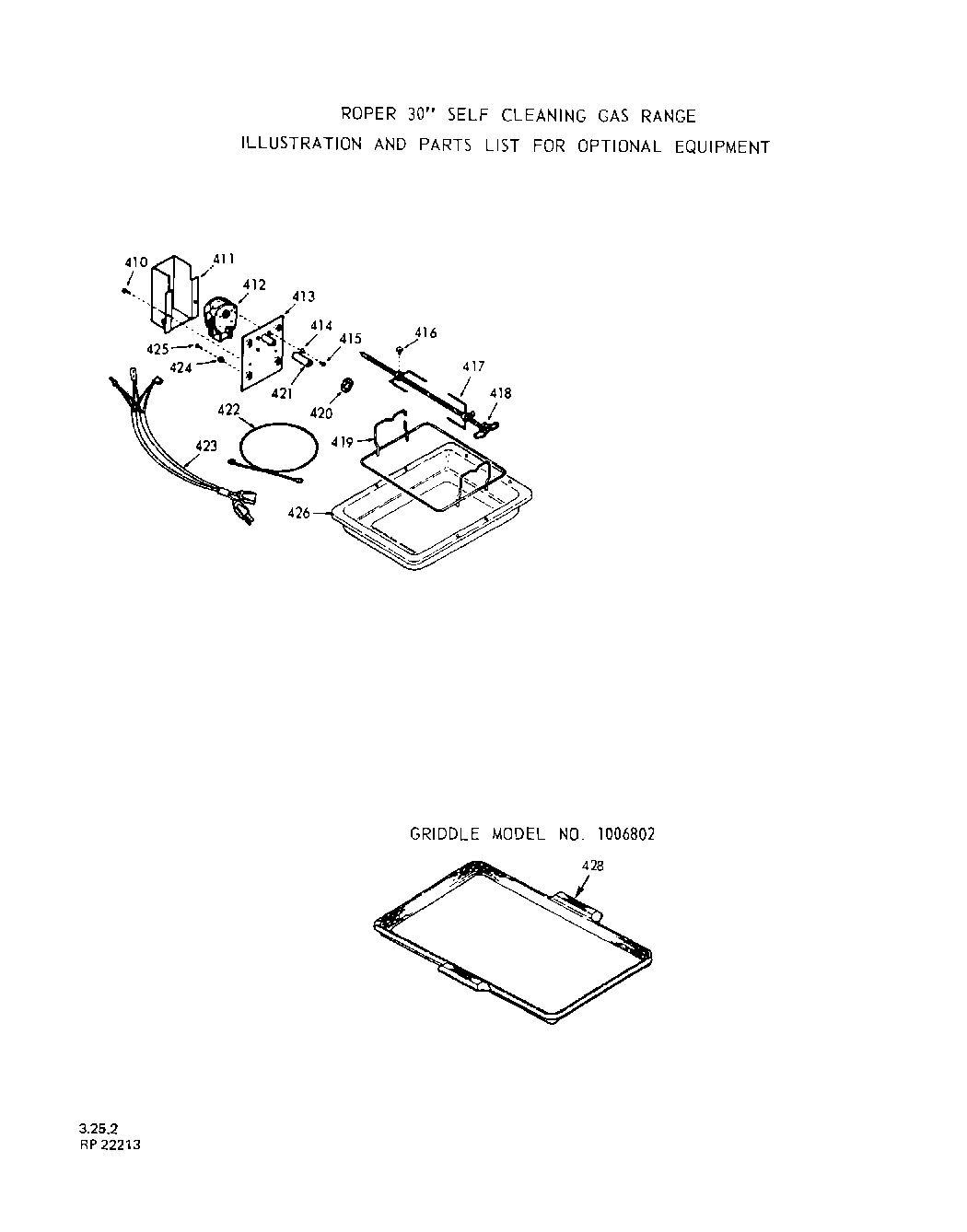

09 - ROTISSERIE, GRIDDLE

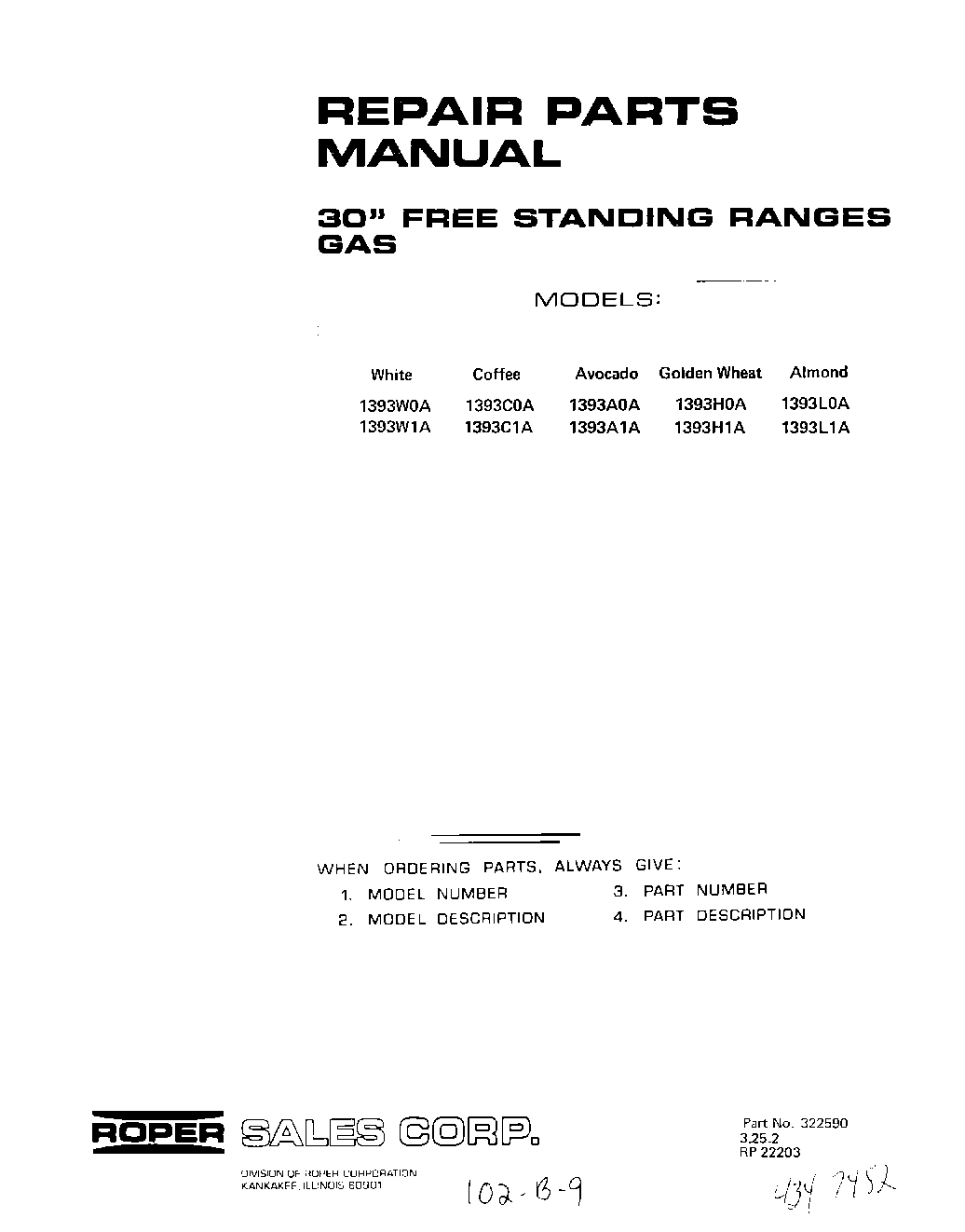

01 - BACKGUARD

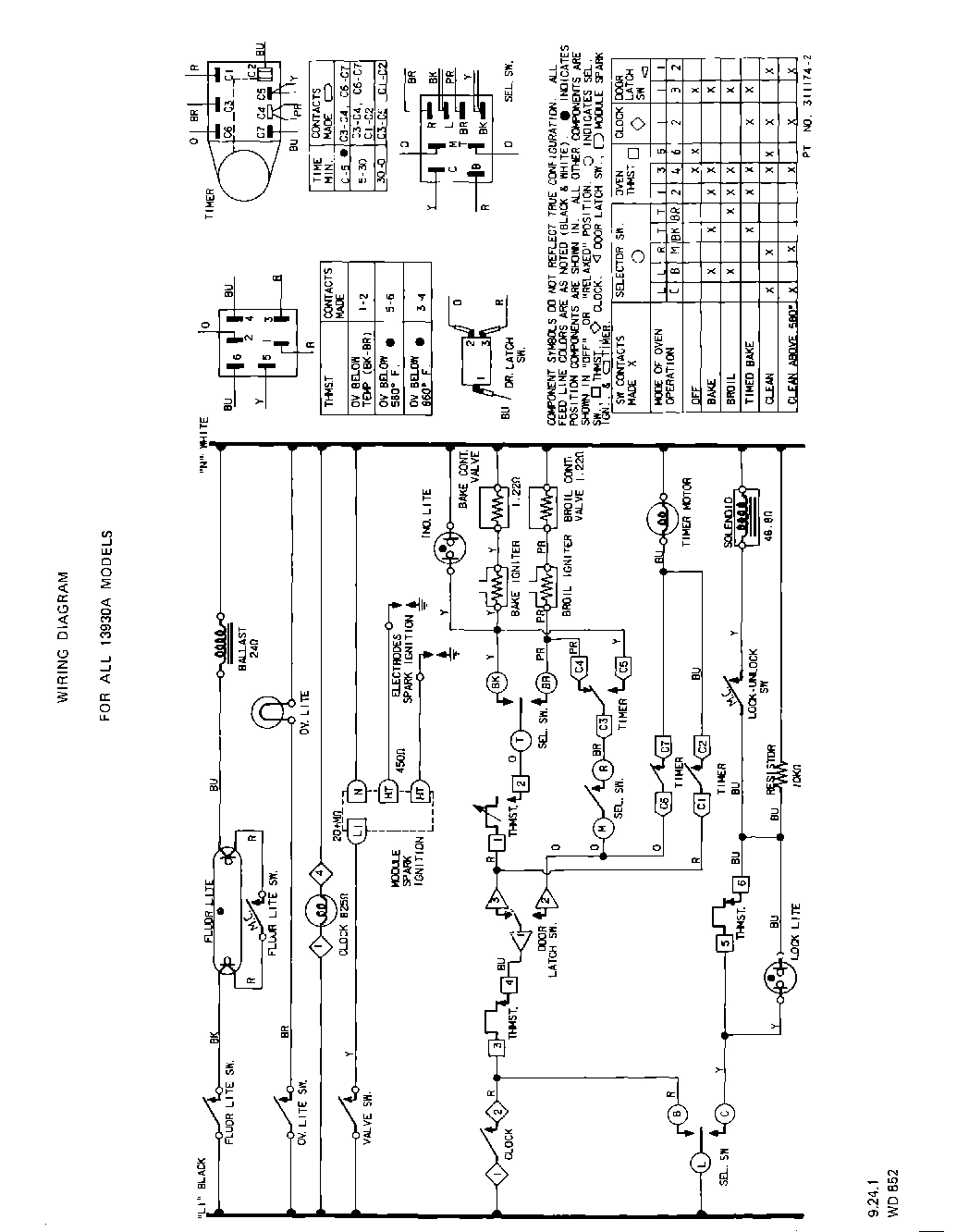

11 - SECTION

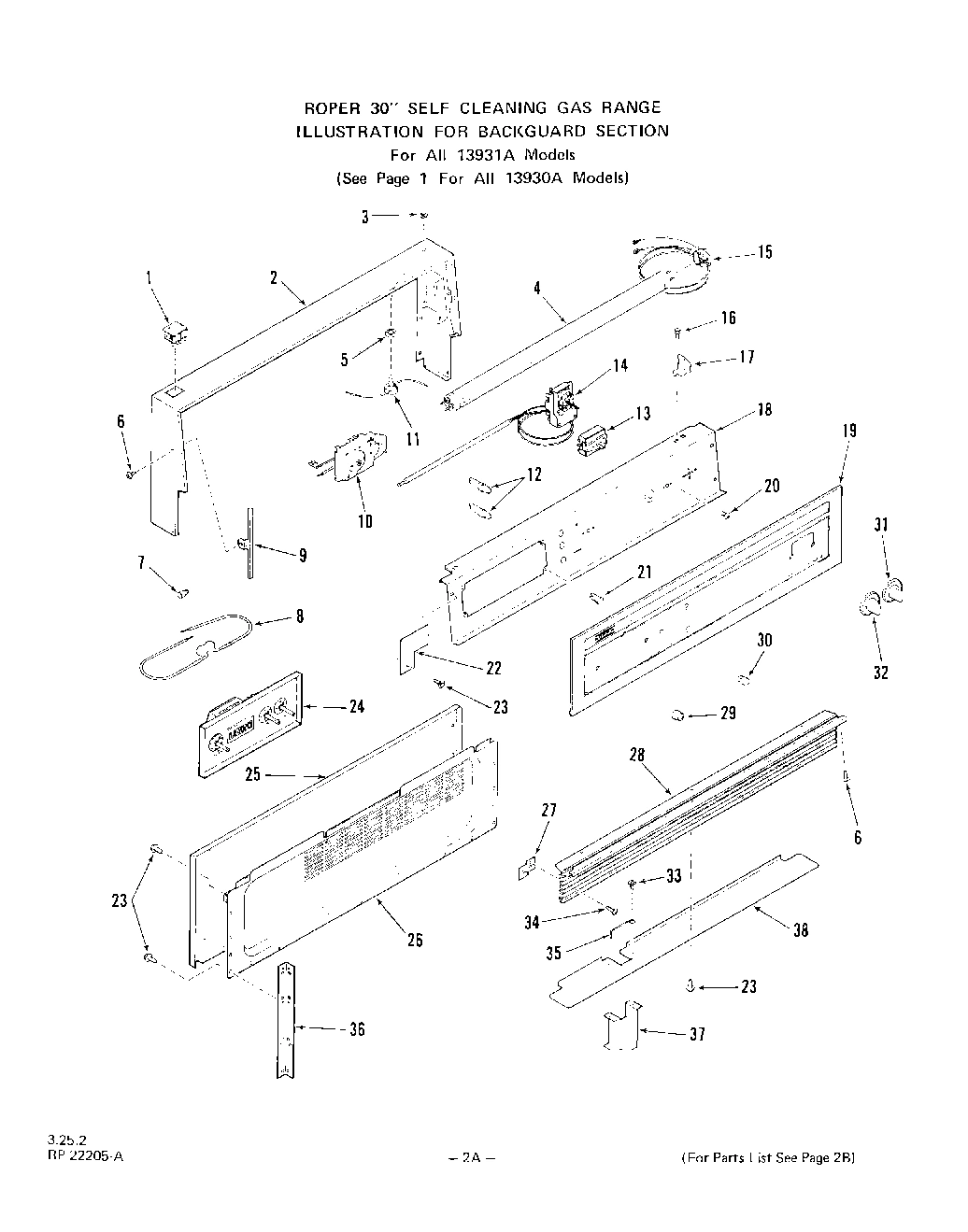

03 - MAIN TOP
05 - BURNER
08 - ROTISSERIE , GRIDDLE

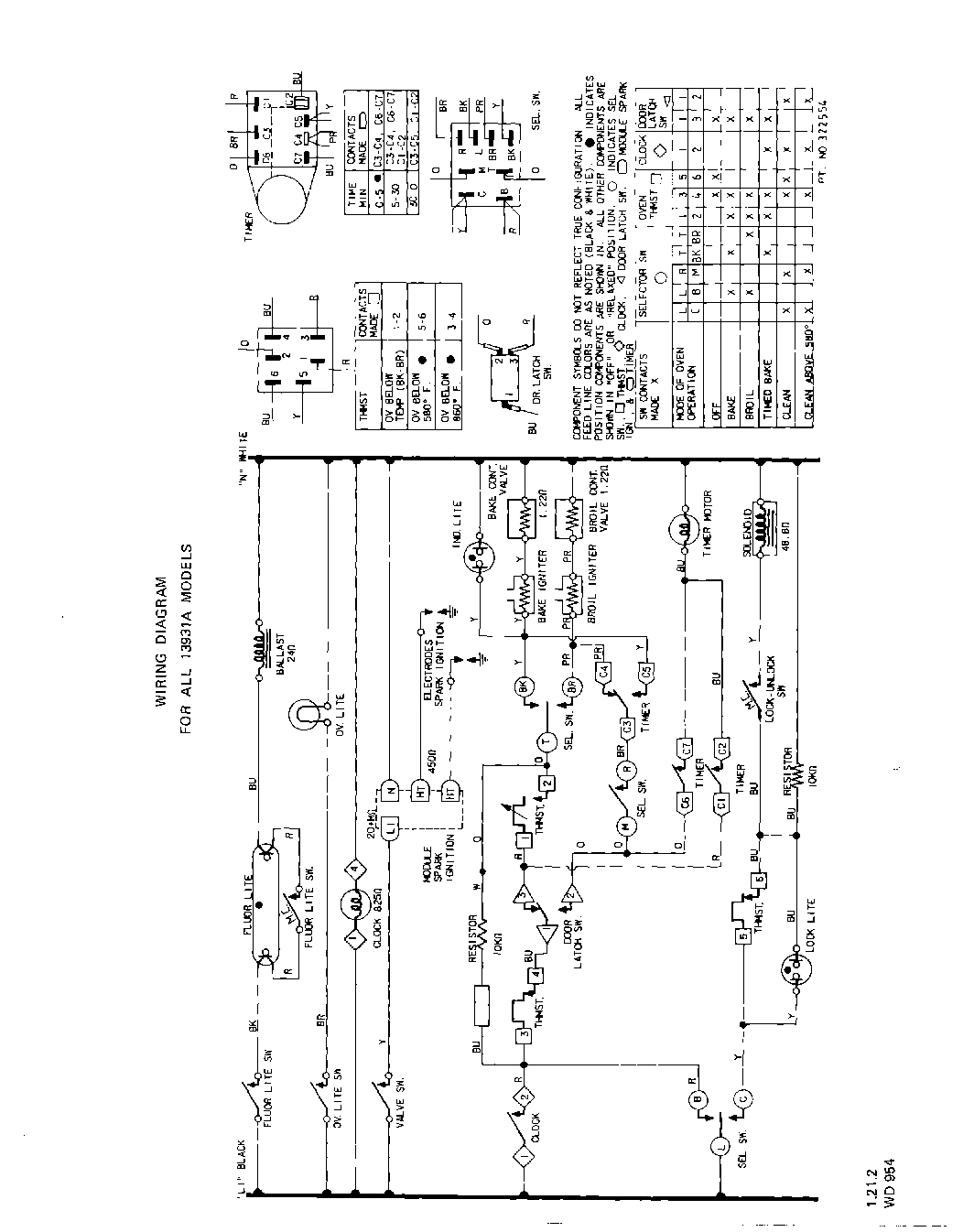

10 - SECTION
Common parts from model Whirlpool 1393^0A GAS RANGE
xScrew (6 Req. for Key 11) WPL 230710 Contact Us For Availability
xSnap-In Clip (6 Req. for Key 11) WPL 298484 Contact Us For Availability
xSwitch (For Key No. 412) WPL 280199 Contact Us For Availability
xInstallation Instructions WPL 300668 Contact Us For Availability
xParts Not Shown On Illustration WPL ARI8114A50 Contact Us For Availability
1
Speed Nut 10-32 WPL 107870 Contact Us For Availability
1
Switch-Top & Oven Light WPL 307411 Contact Us For Availability
2
Frame-Backguard WPL 321374 Contact Us For Availability
3
Knurled Nut WPL 87403 Contact Us For Availability
4
Fluorescent Lamp (20 W - 24``) WPL 71734 Contact Us For Availability
5
Pal Nut (2 Required) WPL 236129 Contact Us For Availability
6
Screw 6-32x3/8`` WPL 295268 Contact Us For Availability
7
Wire Connector WPL 66763 Contact Us For Availability
8
Resistor w/Connector WPL 300326 Contact Us For Availability
8
Glass-Clock WPL 307941 Contact Us For Availability
9
Bezel-Clock WPL 298478 Contact Us For Availability
9
End Trim- Top Lamp Glass (Lt. or Rt.) WPL 299705 Contact Us For Availability
10
Timer WPL 281698 Contact Us For Availability
11
Clock w/1 Hr. Timer WPL 307939 Contact Us For Availability
11
Push Switch (Lock-Unlock) WPL 234416 Contact Us For Availability
12
Indicator Light (Oven, Lock) WPL 296317 Contact Us For Availability
13
Selector Switch WPL 321248 Contact Us For Availability
14
Oven Thermostat WPL 321524 Contact Us For Availability
15
Lamp Holder (Right) WPL 114601 Contact Us For Availability
15
Lamp Holder (Left) WPL 114602 Contact Us For Availability
16
Support-Backguard WPL 299450 Contact Us For Availability
16
Screw 10-32x3/8`` WPL 239113 Contact Us For Availability
17
Bracket-Lamp Holder (Rt. or Lt.) WPL 113236 Contact Us For Availability
18
Holder-Flourescent Lamp (2 Required) WPL 300107 Contact Us For Availability
18
Controls Mounting Panel WPL 310593 Contact Us For Availability
19
Top Lamp Glass WPL 322352 Contact Us For Availability
20
Screw 6-32 x 1/2`` WPL 108788 Contact Us For Availability
20
Screw 8-32x3/16`` WPL 78565 Contact Us For Availability
21
Curtain-Backguard Controls WPL 311099 Contact Us For Availability
21
Tubular Clip WPL 293577 Contact Us For Availability
22
Glass-Top Lamp WPL 307973 Contact Us For Availability
22
Cover-Switch Shield WPL 301799 Contact Us For Availability
24
Clock w/1 Hr. Timer WPL 322348 Contact Us For Availability
25
Auxiliary Cover-Backguard WPL 313842 Contact Us For Availability
26
Wire Cover-Backguard WPL 316355 Contact Us For Availability
26
End Cap-Backguard (Left) WPL 311935 Contact Us For Availability
26
End Cap-Backguard (Right) WPL 311936 Contact Us For Availability
27
Bracket-Backguard (Left) WPL 239690 Contact Us For Availability
27
Bracket-Backguard (Right) WPL 239821 Contact Us For Availability
27
Bracket-Backguard Bottom (Lt. or Rt.) WPL 322152 Contact Us For Availability
28
Bottom Front-Backguard WPL 311100 Contact Us For Availability
28
Front-Backguard Bottom WPL 321098 Contact Us For Availability
29
Knob-Clock (Minute Timer) WPL 294810 Contact Us For Availability
30
Knob-Clock (Start & Stop Time) WPL 109225 Contact Us For Availability
30
End Trim-Fluorescent Glass (Rt. or Lt.) WPL 298533 Contact Us For Availability
31
Indicator Light-Lock & Oven WPL 279339 Contact Us For Availability
31
Knob-Oven Thermostat WPL 320916 Contact Us For Availability
32
Knob-Oven Thermostat WPL 321070 Contact Us For Availability
32
Knob-Selector Switch WPL 320915 Contact Us For Availability
33
Knob-Selector Switch WPL 321069 Contact Us For Availability
33
Clip WPL 70588 Contact Us For Availability
34
Switch-Fluorescent Lamp WPL 298463 Contact Us For Availability
34
Screw 6-32 x 3/8`` WPL 303820 Contact Us For Availability
35
Wire Retainer WPL 239225 Contact Us For Availability
36
Support-Backguard (Lt. or Rt.) WPL 322158 Contact Us For Availability
37
Screw 10-24x3/8`` WPL 68991 Contact Us For Availability
37
Wire Shield-Backguard WPL 286889 Contact Us For Availability
38
Shield-Controls WPL 307599 Contact Us For Availability
40
Switch-Oven Light WPL 298462 Contact Us For Availability

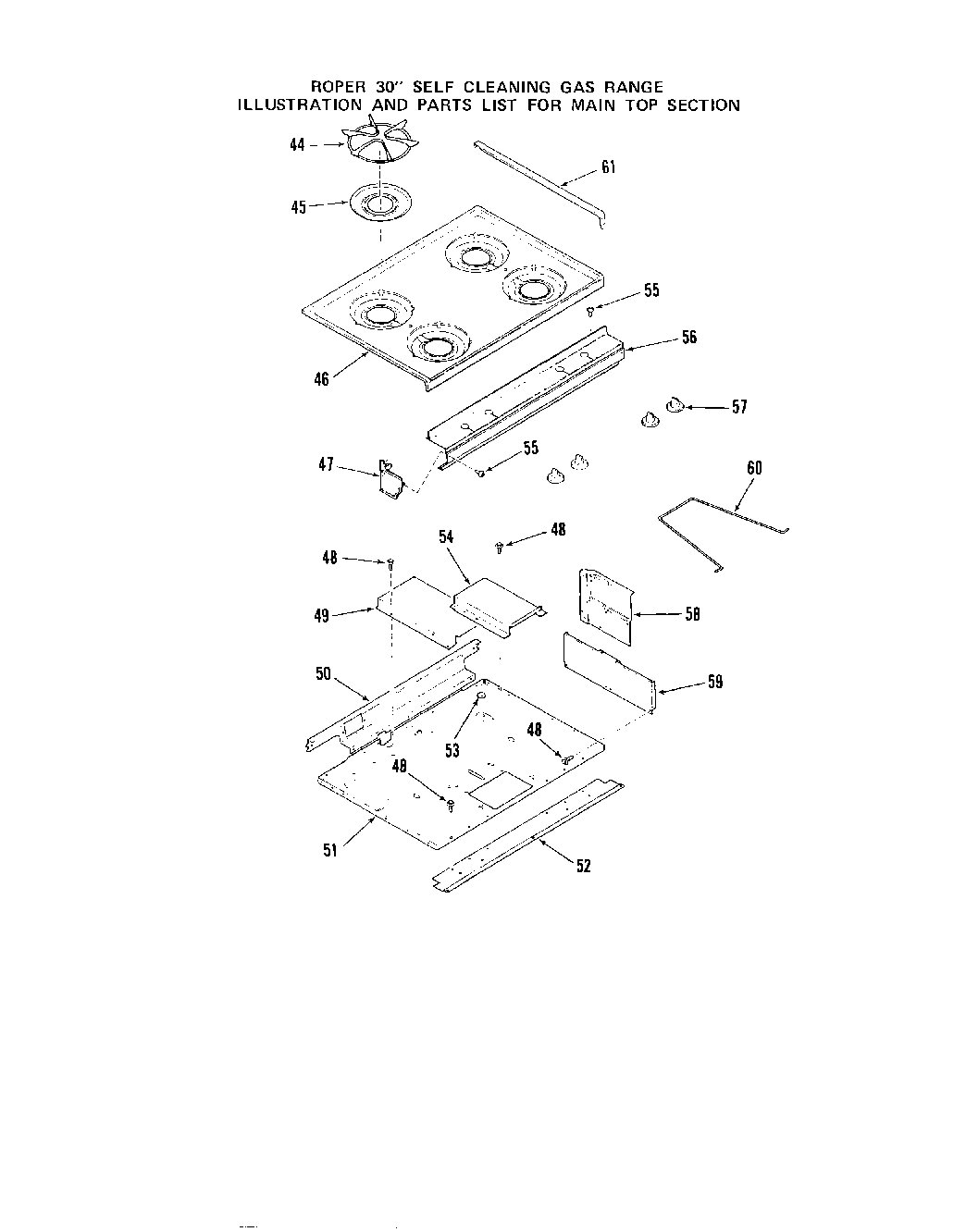

44
Top Grate (4 Required) WPL 316786 Contact Us For Availability
45
Spill Bowl (4 Required) WPL 310385 Contact Us For Availability
46
Main Top (White) WPL 316788 Contact Us For Availability
46
Main Top (Almond) WPL 316789 Contact Us For Availability
46
Main Top (Golden Wheat) WPL 316790 Contact Us For Availability
46
Main Top (Avocado) WPL 316791 Contact Us For Availability
46
Main Top (Coffee) WPL 316792 Contact Us For Availability
47
End Cap (Left) WPL 302660 Contact Us For Availability
47
End Cap (Right) WPL 302661 Contact Us For Availability
49
Cover-Lock Rod WPL 321301 Contact Us For Availability
50
Rear Support-Main Top WPL 310575 Contact Us For Availability
51
Burner Box Bottom WPL 320740 Contact Us For Availability
52
Front Extension-Burner Box Bottom WPL 320841 Contact Us For Availability
53
Plug Button WPL 239831 Contact Us For Availability
54
Cover-Lock WPL 310418 Contact Us For Availability
55
Screw 6-32x3/8`` WPL 306120 Contact Us For Availability
56
Manifold Panel WPL 321502 Contact Us For Availability
57
Knob-Gas Valve (4 Required) (All 13931A Model WPL 320909 Contact Us For Availability
57
Knob-Gas Valve (4 Required) (All 13930A Model WPL 321065 Contact Us For Availability
58
Extension-Burner Box Bottom (Left) WPL 320837 Contact Us For Availability
58
Extension-Burner Box Bottom (Right) WPL 320839 Contact Us For Availability
59
Baffle-Burner Box Bottom (Rt. or Lt.) WPL 320753 Contact Us For Availability
60
Support Rod-Main Top (All 13931A Models) WPL 307443 Contact Us For Availability
60
Support Rod-Main Top (All 13930A Models) WPL 320725 Contact Us For Availability
61
Side Trim-Main Top (Left) WPL 305381 Contact Us For Availability
61
Side Trim-Main Top (Right) WPL 305382 Contact Us For Availability
79
Spacer (2 Required) WPL 310419 Contact Us For Availability
80
Bracket w/Switch WPL 319432 Contact Us For Availability
81
Mounting Screw WPL 319433 Contact Us For Availability
82
Screw 10 - 32 x 7/16`` WPL 295850 Contact Us For Availability
83
Solenoid Only WPL 319431 Contact Us For Availability
84
Cotter Pin WPL 318089 Contact Us For Availability
85
Spring-Solenoid WPL 299704 Contact Us For Availability
86
Rod-Oven Door Lock WPL 310555 Contact Us For Availability
88
Spring-Lock Handle WPL 299599 Contact Us For Availability
89
Knob-Oven Door Lock Handle WPL 299627 Contact Us For Availability
90
Screw 6-32x15/32`` WPL 313768 Contact Us For Availability
91
Oven Door Lock Assem (Inc Key 88) WPL 310532 Contact Us For Availability
92
Washer WPL 106462 Contact Us For Availability
93
Screw 10-32x7/16`` WPL 316365 Contact Us For Availability

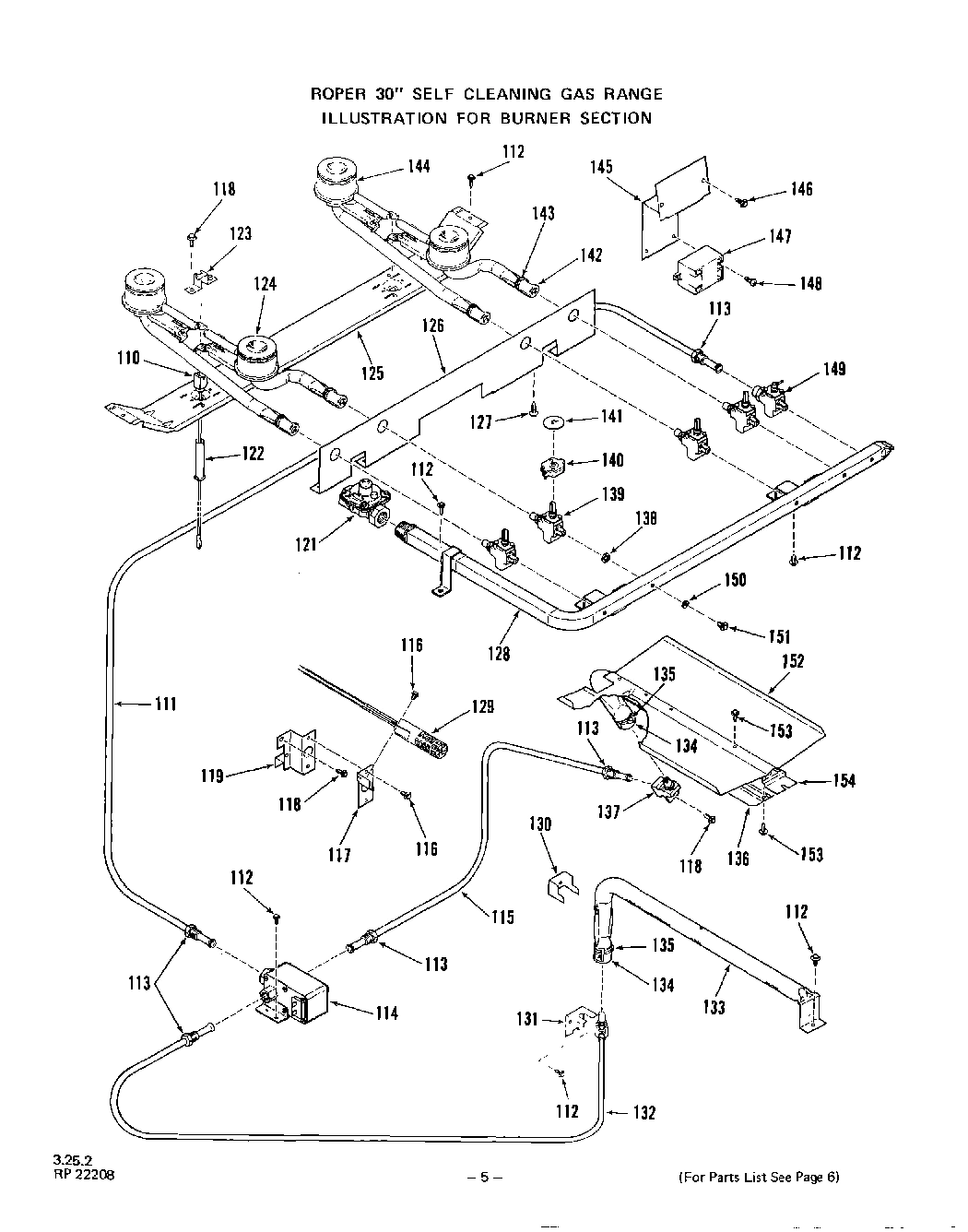

110
Electrode-Spark Igniter (Right) WPL 312454 Contact Us For Availability
110
Electrode-Spark Igniter (Left) WPL 313629 Contact Us For Availability
111
Tubing 3/8``-Shut Off Valve to Control Valve WPL 310903 Contact Us For Availability
113
Inverted Nut 3/8`` WPL 113384 Contact Us For Availability
114
Dual Control Valve WPL 306267 Contact Us For Availability
115
Tubing 3/8``-Control Valve to Broiler Burner WPL 310905 Contact Us For Availability
117
Bracket-Igniter (Oven or Broiler Burner) WPL 311689 Contact Us For Availability
119
Bracket-Igniter (Oven Burner) WPL 310497 Contact Us For Availability
121
Pressure Regulator WPL 314056 Contact Us For Availability
122
Spacer-Lt. or Rt. WPL 320844 Contact Us For Availability
123
Bracket-Spark Igniter (Lt. or Rt.) WPL 312453 Contact Us For Availability
124
Front Top Burner-Lt. or Rt. (Inc`s 142 & 143) WPL 310198 Contact Us For Availability
125
Support-Top Burner WPL 312452 Contact Us For Availability
126
Wire Shield-Gas Valve WPL 320744 Contact Us For Availability
128
Manifold Pipe WPL 320742 Contact Us For Availability
129
Igniter-Oven or Broiler Burner WPL 319887 Contact Us For Availability
130
Support-Oven Burner WPL 282122 Contact Us For Availability
131
Bracket-Orifice Fitting WPL 282112 Contact Us For Availability
132
Tubing 3/8`` w/Orifice WPL 312076 Contact Us For Availability
133
Oven Burner (Inc`s 134 & 135) WPL 318449 Contact Us For Availability
134
Air Shutter WPL 312988 Contact Us For Availability
135
Adjustment Screw -Air Shutter WPL 312989 Contact Us For Availability
136
Lower Baffle - Broiler Burner WPL 302904 Contact Us For Availability
137
Broiler Orifice Fitting WPL 311981 Contact Us For Availability
138
Silicone Rubber Gasket WPL 313563 Contact Us For Availability
139
Gas Valve-4 Required (Inc`s 138) WPL 313224 Contact Us For Availability
140
Switch-Gas Valve (4 Required) WPL 310253 Contact Us For Availability
141
Shield-Gas Valve (4 Required) WPL 306589 Contact Us For Availability
142
Air Shutter WPL 301910 Contact Us For Availability
143
Adjustment Screw-Air Shutter WPL 301911 Contact Us For Availability
144
Rear Top Burner-Rt. or Lt. (Inc`s 142 & 143) WPL 310199 Contact Us For Availability
145
Bracket-Module WPL 310527 Contact Us For Availability
147
Module-Spark Igniter WPL 320990 Contact Us For Availability
148
Screw 6-32x3/8`` WPL 105667 Contact Us For Availability
149
Shut Off Va WPL 312437 Contact Us For Availability
150
WPL 304241 WPL 304241 Contact Us For Availability
151
WPL 311455 WPL 311455 Contact Us For Availability
152
WPL 300263 WPL 300263 Contact Us For Availability
153
WPL 97217 WPL 97217 Contact Us For Availability
154
WPL 318758 WPL 318758 Contact Us For Availability

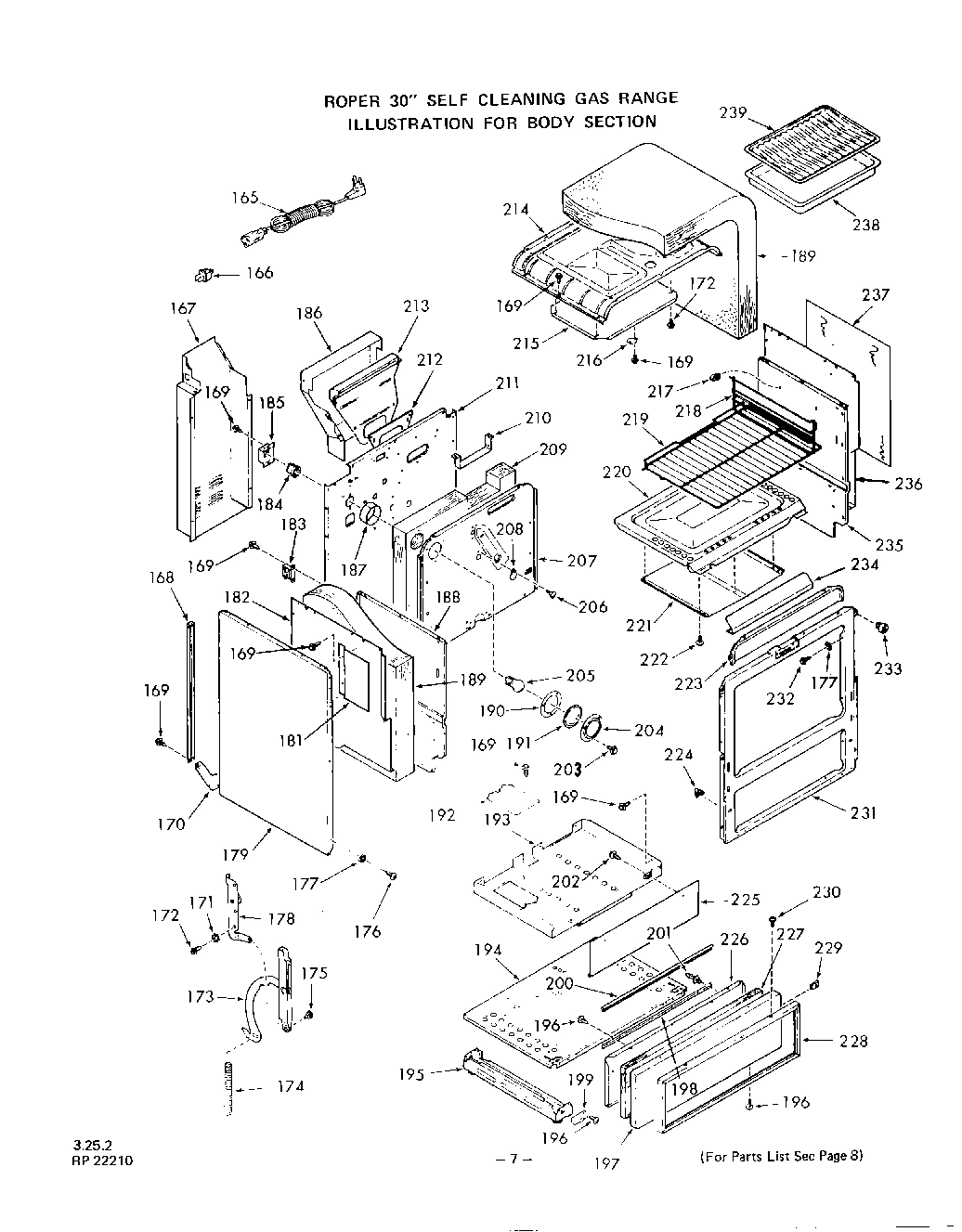

165
Range Service Cord WPL 281381 Contact Us For Availability
166
Disconnect WPL 232150 Contact Us For Availability
167
Wire Cover WPL 310579 Contact Us For Availability
168
Stiffener - Body Side (Lt. or Rt.) WPL 309986 Contact Us For Availability
170
Lower Support - Body Side (Right) WPL 293420 Contact Us For Availability
170
Lower Support - Body Side (Left) WPL 293421 Contact Us For Availability
170
Lower Support - Body Side WPL ARI8113A48 Contact Us For Availability
171
Lockwasher WPL 69648 Contact Us For Availability
172
Screw 10 - 32 x 3/8`` WPL 102429 Contact Us For Availability
173
Oven Door Hinge (Inc. Key 175) Lt. or Rt.) WPL 293971 Contact Us For Availability
174
Spring-Oven Door (Lt. or Rt.) WPL 310993 Contact Us For Availability
175
Shoulder rivet WPL 293224 Contact Us For Availability
176
Screw 8ABx3/4`` WPL 282634 Contact Us For Availability
178
Oven Door Hinge Bracket (Inc. Key 175) (Left) WPL 301389 Contact Us For Availability
178
Oven Door Hinge Bracket (Inc. Key 175) (Right WPL 301390 Contact Us For Availability
179
Body Side (Inc. Key 237) Lt. or Rt. (White) WPL 321920 Contact Us For Availability
179
Body Side (Inc. Key 237) Lt. or Rt. (Coffee) WPL 321921 Contact Us For Availability
179
Body Side (Inc. Key 237) Lt. or Rt. (Avocado) WPL 321922 Contact Us For Availability
179
Body Side (Inc. Key 237) Lt. or Rt. (Golden W WPL 321923 Contact Us For Availability
179
Body Side (Inc. Key 237) Lt. or Rt. (Almond) WPL 321924 Contact Us For Availability
181
Baffel-Side Panel (Lt or Rt) WPL 311029 Contact Us For Availability
182
Upper Insulation Retainer-Lt. WPL 322075 Contact Us For Availability
183
Ballast WPL 98186 Contact Us For Availability
184
Holder-Oven Light WPL 87883 Contact Us For Availability
185
Bracket-Oven Lamp Holder WPL 229369 Contact Us For Availability
186
Cover-Flue Deflector WPL 310577 Contact Us For Availability
187
Insulation-Retainer Oven Light WPL 229370 Contact Us For Availability
188
Oven Side-Left WPL 285482 Contact Us For Availability
189
Insulation-Oven Top & Sides WPL 282953 Contact Us For Availability
190
Gasket-Lens WPL 229371 Contact Us For Availability
191
Lens-Oven Light WPL 114989 Contact Us For Availability
192
Access Plate WPL 321274 Contact Us For Availability
193
Bottom-Oven Burner WPL 321272 Contact Us For Availability
194
Main Bottom WPL 319808 Contact Us For Availability
195
Base w/Levelers (Lt. or Rt.) WPL 310964 Contact Us For Availability
197
Front-Snap On Panel WPL 310975 Contact Us For Availability
198
Retainer - Seal WPL 295277 Contact Us For Availability
200
WPL 295278 WPL 295278 Contact Us For Availability
201
WPL 283882 WPL 283882 Contact Us For Availability
202
WPL 300864 WPL 300864 Contact Us For Availability
204
WPL 229372 WPL 229372 Contact Us For Availability
205
WPL 111257 WPL 111257 Contact Us For Availability
206
WPL 289730 WPL 289730 Contact Us For Availability
207
WPL 312013 WPL 312013 Contact Us For Availability
208
WPL 229607 WPL 229607 Contact Us For Availability
209
WPL 282535 WPL 282535 Contact Us For Availability
210
WPL 282156 WPL 282156 Contact Us For Availability
211
WPL 312014 WPL 312014 Contact Us For Availability
212
WPL 282157 WPL 282157 Contact Us For Availability
213
WPL 294197 WPL 294197 Contact Us For Availability
214
WPL 282102 WPL 282102 Contact Us For Availability
215
WPL 285860 WPL 285860 Contact Us For Availability
216
WPL 237762 WPL 237762 Contact Us For Availability
217
WPL 288392 WPL 288392 Contact Us For Availability
218
WPL 306149 WPL 306149 Contact Us For Availability
218
WPL 306150 WPL 306150 Contact Us For Availability
219
WPL 305361 WPL 305361 Contact Us For Availability
220
WPL 283457 WPL 283457 Contact Us For Availability
221
WPL 282127 WPL 282127 Contact Us For Availability
222
WPL 97220 WPL 97220 Contact Us For Availability
223
WPL 282118 WPL 282118 Contact Us For Availability
224
WPL 71003 WPL 71003 Contact Us For Availability
225
WPL 304125 WPL 304125 Contact Us For Availability
227
WPL 282952 WPL 282952 Contact Us For Availability
228
WPL 310977 WPL 310977 Contact Us For Availability
229
WPL 108069 WPL 108069 Contact Us For Availability
231
WPL 321919 WPL 321919 Contact Us For Availability
233
WPL 100576 WPL 100576 Contact Us For Availability
234
WPL 281574 WPL 281574 Contact Us For Availability
235
WPL 294195 WPL 294195 Contact Us For Availability
236
WPL 322073 WPL 322073 Contact Us For Availability
237
WPL 239603 WPL 239603 Contact Us For Availability
238
WPL 282278 WPL 282278 Contact Us For Availability
239
WPL 282273 WPL 282273 Contact Us For Availability
350
Outer Door Glass WPL 319296 Contact Us For Availability
351
Front Panel-Oven Door WPL 320717 Contact Us For Availability
352
Fastener (7 Required) WPL 300007 Contact Us For Availability
353
Screw 10ABx1`` WPL 321943 Contact Us For Availability
355
Spacer-Oven Door Glass (Lt. or Rt.) WPL 310929 Contact Us For Availability
357
Retainer-Side Insulation (Left) WPL 320722 Contact Us For Availability
357
Retainer-Side Insulation (Right) WPL 320724 Contact Us For Availability
358
Side Insulation-Lt. or Rt. WPL 320720 Contact Us For Availability
359
Insulation-Oven Door Lining WPL 320718 Contact Us For Availability
360
Gasket-Oven Door WPL 282441 Contact Us For Availability
361
Insulation-Oven Door Plug WPL 321930 Contact Us For Availability
362
Washer WPL 21067 Contact Us For Availability
363
Screw 10-32 x 1/2`` WPL 102376 Contact Us For Availability
364
Seal-Fiberglass WPL 302935 Contact Us For Availability
365
Screw 10-24x2-3/8`` WPL 303003 Contact Us For Availability
366
Plug-Oven Door Lining WPL 320677 Contact Us For Availability
367
Inner Door Glass WPL 312426 Contact Us For Availability
368
Stiffener-Oven Door Lining WPL 310911 Contact Us For Availability
369
Lining-Oven Door WPL 310912 Contact Us For Availability
370
Retainer-Oven Door Glass Insulation WPL 310909 Contact Us For Availability
371
Insulation Retainer WPL 320719 Contact Us For Availability
372
Center Door Glass WPL 296214 Contact Us For Availability
373
Intermediate Door Glass WPL 308239 Contact Us For Availability
374
Screw 10 - 32 x 1/4`` WPL 105771 Contact Us For Availability
375
Shield-Oven Door Lining WPL 314912 Contact Us For Availability
376
Top Frame-Oven Door Glass WPL 319295 Contact Us For Availability
377
Handle-Oven Door WPL 282093 Contact Us For Availability
378
Cushion (6 Required) WPL 112370 Contact Us For Availability
379
Main-All 13930A Models WPL 311203 Contact Us For Availability
379
Switch WPL 311529 Contact Us For Availability
379
Frame-Oven Door Glass WPL 319292 Contact Us For Availability
379
Main-All 13931A Models WPL 322552 Contact Us For Availability
411
Cover - Rotisserie Motor WPL 282918 Contact Us For Availability
412
Rotisserie Motor WPL 106575 Contact Us For Availability
413
Mounting Bracket-Rotisserie Motor WPL 282920 Contact Us For Availability
414
Lockwasher 3/16`` WPL 1164 Contact Us For Availability
415
Screw 8-32 x 3/8`` WPL 87860 Contact Us For Availability
416
Thumbscrew WPL 70287 Contact Us For Availability
417
Skewer WPL 88433 Contact Us For Availability
418
Rotisserie Spit WPL 100092 Contact Us For Availability
419
Spit Support WPL 232137 Contact Us For Availability
420
Plug Button WPL 100095 Contact Us For Availability
421
Guide Extension - Rotisserie Motor WPL 282925 Contact Us For Availability
422
Fixture Wire Lead With 1/4`` Faston & Piggyba WPL 284278 Contact Us For Availability
422
Fixture Wire Lead With 1/4`` Faston & PiggyBa WPL 291284 Contact Us For Availability
422
Fixture Wire Lead With 1/4`` Faston & Piggyba WPL 321951 Contact Us For Availability
422
Fixture Wire Lead With 1/4`` Faston & Piggyba WPL 321952 Contact Us For Availability
423
Rotisserie Cord WPL 282924 Contact Us For Availability
424
Lockwasher WPL 69603 Contact Us For Availability
426
Rotisserie Pan WPL 291397 Contact Us For Availability
428
Set-On-Griddle (Optional) WPL 1006802 Contact Us For Availability
× ![]()
